五軸可調式中心虎鉗 (ASC-S)



  • 中心校準是由特殊螺桿設計微調
  • 建議在五軸機器上搭配零點定位快換裝置進行操作
  • 兼容機械臂，生產自動化
        • 1.虎鉗本體材質為合金鋼 (S50C)，虎鉗滑軌經高週波熱處理，硬度達HRC50，耐磨性度增強
        • 2.虎口爪材質為高級工具鋼 (SCM440) ，經滲碳處理硬度高達HRC55，虎口爪可拆卸並翻轉安裝，以利增加夾持範圍
        • 3.虎鉗中心重覆定位精度: ±0.02mm；夾持力可達 1300KG
        • 4.使用者可以透過調整兩端螺絲，快速校準中心精度
        • 5.虎口爪上端為帶齒45度燕尾特殊結構設計，確保穩固夾持工件底部
        • 6.應用：四軸、五軸、3+2軸、4+1軸、CNC分度台及立臥式數控銑床的精密加工。
        • 五軸可調式中心虎鉗 (ASC-S)
        •

標準配件:

 • 4個壓板
 • 1個扳手

選配配件:

 • 零點定位快速變換系統裝置
 • 拉栓

夾持爪運用範例:

五軸中心虎鉗專用 - 彈性爪 標準齒爪 光面爪 窄版爪 軟爪



specifications for Five Axis Self-Centering Vises ASC-S series

規格表 (材質: 虎鉗本台 S50C. 熱處理 HRC50 / 虎口爪 SCM440. 熱處理 HRC55)
單位: mm
型號ABCC1C2C3DEFGHI搭配拉栓
ASC-77x102S70432832858910M61021077712M-52x52PS
ASC-77x130S7043566011311710M61301357712M-52x52PS
ASC-77x170S70439610015315710M61701757712M-52x52PS
ASC-77x210S704313614019319710M62102157712M-52x52PS
ASC-127x160S8755707513313816M616016512714M-96x96PS
ASC-127x210S875512012518318816M621021512714M-96x96PS
ASC-127x260S875517017523323816M626026512714M-96x96PS
ASC-127x310S875522022528328816M631031512714M-96x96PS
ASC-127x360S875527027533333816M636036512714M-96x96PS
型號JJ1J2KK1K2K3LNOP重量 (kg)
ASC-77x102S29.5372427183775242152.8
ASC-77x130S29.5372427183775242153.5
ASC-77x170S29.5372427183775242154.2
ASC-77x210S29.5372427183775242154.9
ASC-127x160S2.59.54529322031269690249
ASC-127x210S2.59.5 45293220312696902411
ASC-127x260S2.59.5 45293220312696902413
ASC-127x310S2.59.5 45293220312696902415
ASC-127x360S2.59.5 45293220312696902417


零點定位母板
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用

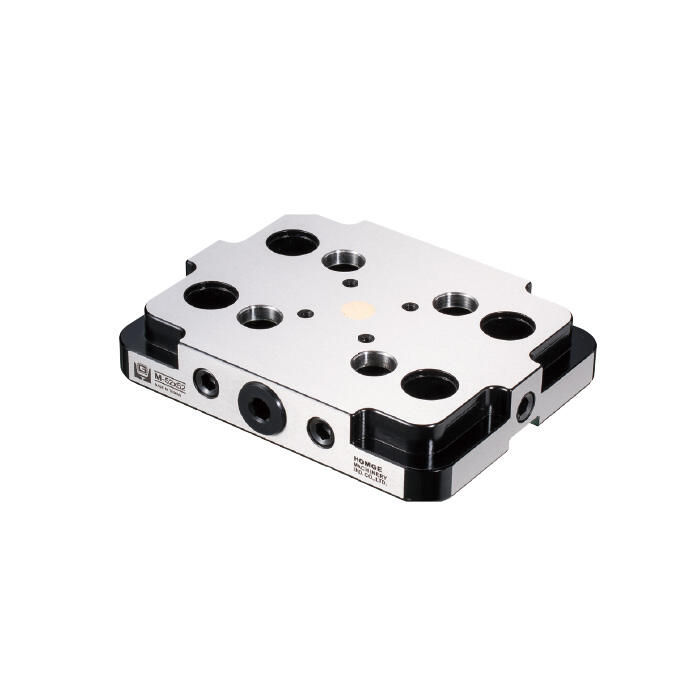

RECTANGULAR MASTER PLATE (with Clamping Edge and Mounting Bores) for Zero Point ClampingRECTANGULAR MASTER PLATE (with Clamping Edge and Mounting Bores) for Zero Point ClampingRECTANGULAR ADAPTER PLATE for Zero Point Clamping52/96 COMBO RECTANGULAR PLATE for Zero Point Clamping
M-52x52(8001)M-96x96(8051)M-52x96(8003)M-52/96(8287)
RECTANGULAR MASTER PLATE for Zero Point ClampingRECTANGULAR MASTER PLATE for Zero Point Clamping
M-52x52(8002)M-96x96(8052)
ROUND PLATE (with Mounting Bores) for Zero Point ClampingROUND ADAPTER PLATE for Zero Point ClampingROUND ADAPTER PLATE for Zero Point Clamping52/96 COMBO ROUND PLATE for Zero Point Clamping
M-52x52(8004)M-96x96(8053)M-52x96(8006)M-52/96(8288)
ROUND PLATE for Zero Point ClampingROUND PLATE for Zero Point Clamping
M-52x52(8005)M-96x96(8054)
 ROUND PLATE (with Mounting Bores) for Zero Point Clamping
 M-96x96(8057),(8059),(8060)
零點定位雙面基座
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用

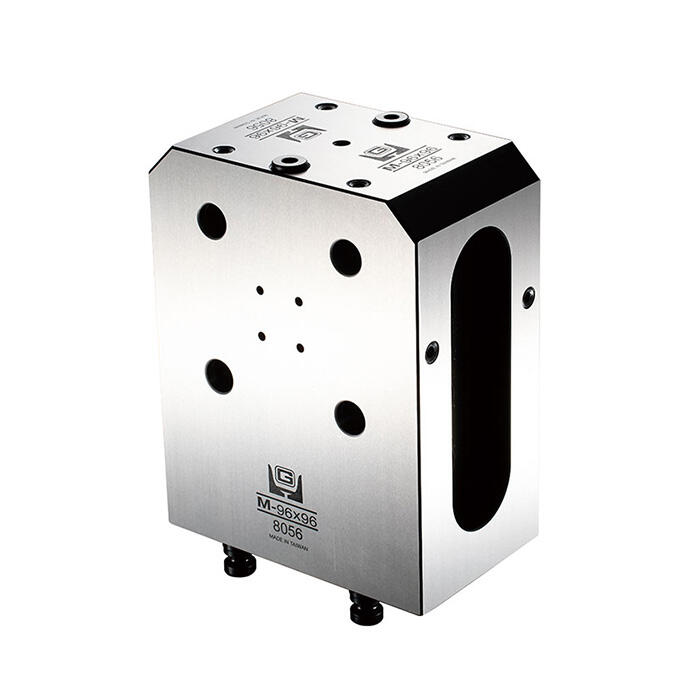

Twin Base for Zero Point Quick Clamping SystemTwin Base for Zero Point Quick Clamping System M-52/96(8056)
M-52x52(8008)M-96x96(8056)
零點定位快速校正規
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用
MASTER GAUGING PLATE for Zero Point ClampingMASTER GAUGING PLATE for Zero Point Clamping
M-52x52(8010)M-96x96(8058)
零點定位墊高塊
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用
 ALUMINUM ROUND RISER for Zero Point Clamping
 M-96x96(8202),(8206)

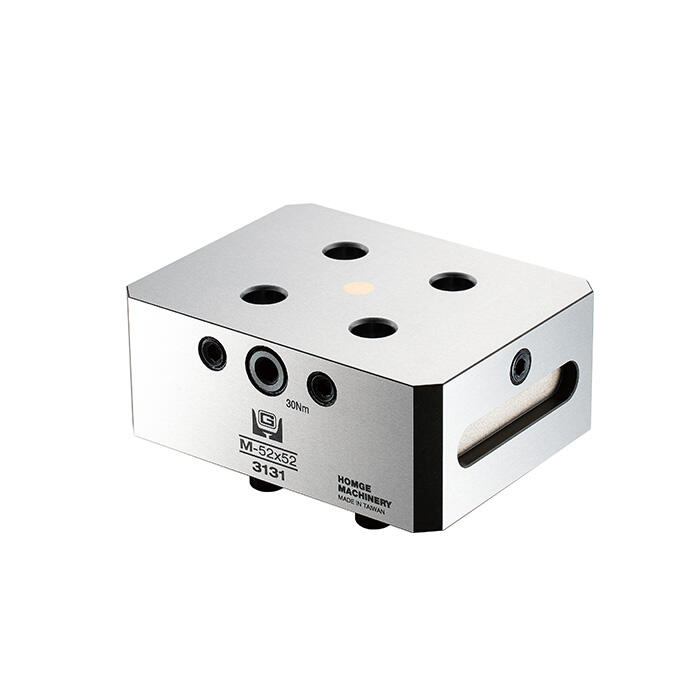

RECTANGULAR RISER for Zero Point ClampingRECTANGULAR RISER for Zero Point ClampingRECTANGULAR RISER for Zero Point Clamping零點定位方形墊高塊 (52 /96通用款)_ 高度60mm
M-52x52(3131),(3133)M-96x96(8222),(8226)M-52x52(3131),(3133)M-52/96(8282),(82822)
零點定位多功能母板
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用

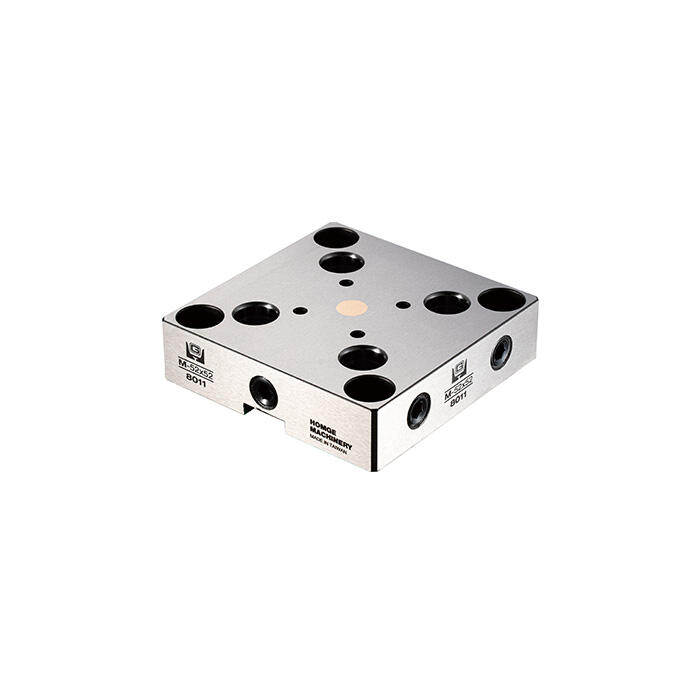

RECTANGULAR MULTI PLATE/ GRID PLATE (Single) for Zero Point ClampingRECTANGULAR MULTI PLATE/ GRID PLATE (Single) for Zero Point Clamping
M-52x52(8011)M-96x96(80522)
 SIDED-MOUNTED PLATE for Zero Point Clamping
 M-96x96(8086G)
 SIDED-MOUNTED PLATE for Zero Point Clamping
 M-96x96(8088G)

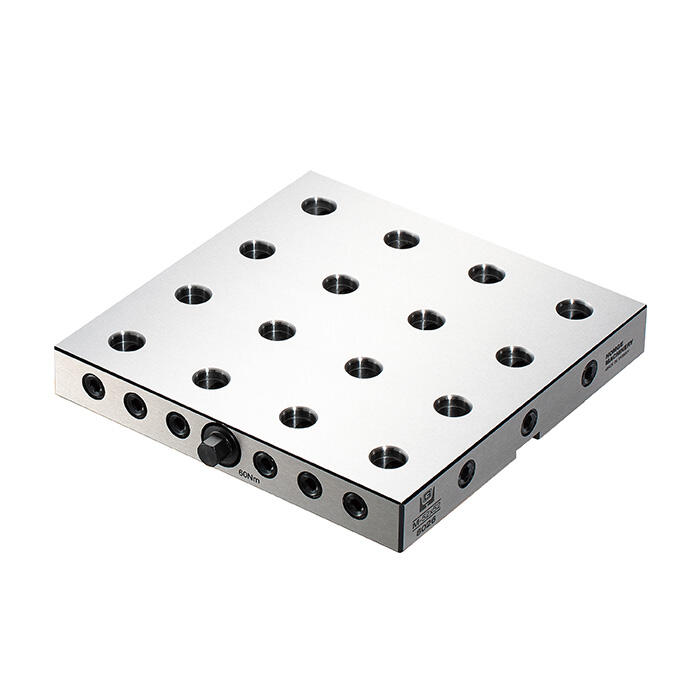

M-52x52(7062)RECTANGULAR MULTI PLATE/ GRID PLATE for Zero Point Clamping
 M-96x96(8062)
 2-fold ROUND MULTI PLATE/ GRID PLATE for Zero Point Clamping
 M-96x96(8067)
4-fold RECTANGULAR MULTI PLATE/ GRID PLATE for Zero Point Clamping4-fold RECTANGULAR MULTI PLATE/ GRID PLATE for Zero Point Clamping
M-52x52(8026)M-96x96(8066),(8066-B)
零點定位四軸橋板
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用
TWIN CLAMPING BRIDGE for 52mm Zero Point Clamping2-fold CLAMPING BRIDGE (Single Sided) for 96mm Zero Point Clamping
M-52x52(8022)M-96x96(8068)
 3-fold CLAMPING BRIDGE (Single Sided) for 96mm Zero Point Clamping
 M-96x96(8072G)
零點定位立柱
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用
  3-FACED TOMBSTONE for Zero Point Clamping
  M-52x52(9133)
  3-FACED TOMBSTONE for Zero Point Clamping
  M-52x52(9333)

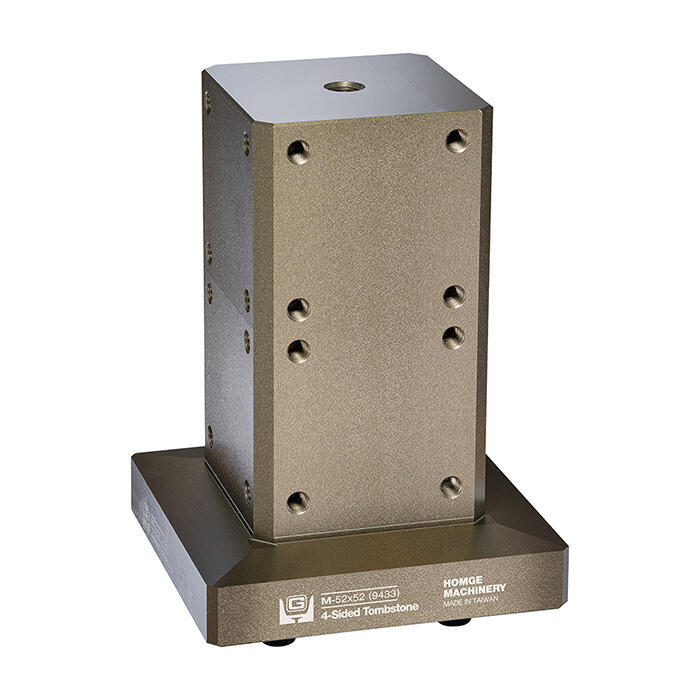

  4-FACED TOMBSTONE for Zero Point Clamping
  M-52x52(9433)
零點定位金字塔
52mm 系統96mm 系統轉換 96mm 為 52mm 系統52mm and 96mm 複合共用
 3-FACED PYRAMID for 96mm Zero Point Clamping
 M-96x96(9319)M-52x52(9314)
